Flexshade® Hypar

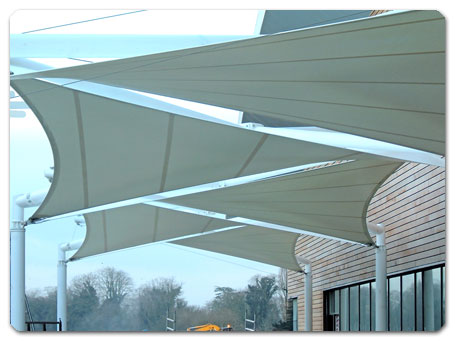

The Hypar series provides a unique design element featuring a twisted membrane with overhead support structure. Modules can be linked together offering a variety of plan layouts. The Hypar is ideal for applications that require a contemporary shade solution with maximum coverage. This range also offers a durable, attractive alternative to traditional shade sails.

Features

  • Certified C.P. Engineered Design
  • Structural Steel Support Struts
  • Acrylic or Tedlar PVC/Polyester Fully Welded Membranes
  • Zinc & Powder Coated Steel frames
  • Marine Grade Stainless Cables & Fittings
  • Engineered for winds up to 160km/hr - 100mph
  • 10 Year Structural Warranty

Options

  • Electropolished Stainless Steel Frames
  • Provision for Electric Lighting and Heating Units
  • Full range of Dulux RAL powdercoat colours
  • 16 Standard Membrane Colours

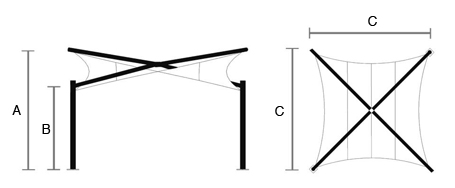

TYPE
A
B
C
 H 14
 		3128
10' 3"		 2500
8' 2"		 2900
9' 6"
 H 19
 		3450
11' 4"		 2500
8' 2"		 4330
14' 10"
 H 25
 		3771
12' 4"		 2500
8' 2"		 5760
18' 11"
H 32 4090
13' 5"		 2500
8' 2"		 7160
23' 6"

Download Hypar Specifications
