Flexshade® Lotus

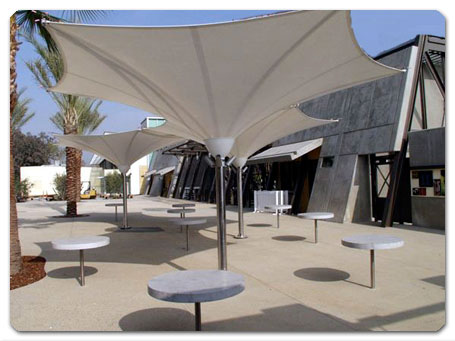

The Lotus is an inverted, hexagonal conical module, with support frames concealed above the waterproof shade membrane. The design incorporates internal drainage so the there is no external drip edges. The Lotus can be clustered in a beehive pattern for stunning architectural effect.

Features

  • Certified C.P. Engineered Non Retractable Design
  • Structural Steel Support Struts - no wires used
  • Acrylic or Tedlar PVC/Polyester Fully Welded Membranes
  • Zinc & Powder Coated Steel frames
  • Marine Grade Stainless Cables & Fittings
  • Engineered for winds up to 160km/hr - 100mph
  • 10 Year Structural Warranty

Options

  • Electropolished Stainless Steel Frames
  • Provision for Electric Lighting and Heating Units
  • Full range of Dulux RAL powdercoat colours
  • 16 Standard Membrane Colours

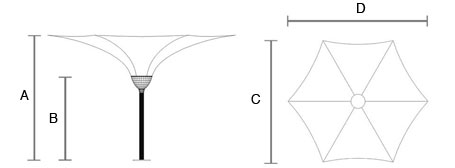

TYPE
A
B
C
D
L 14
 		2880
9' 5"		 1900
6' 3"		 3695
12' 4"		 4270
14' 3"
L 19
 		3330
11' 6"		 2245
7' 4"		 5015
16' 6"		 5790
19'
L 25
 		3750
12' 3"		 2000
6' 7"		 6600
21' 7"		 7620
25'
