Architectural Shade Solutions
Quartet Square Umbrellas

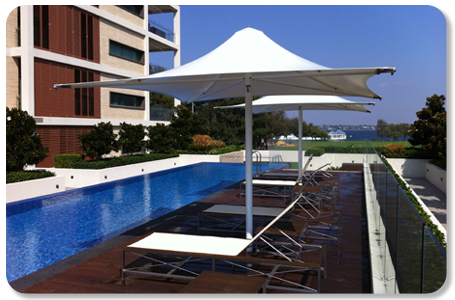

Quartet Square Umbrellas are our most popular and versatile model, suitable for a wide range of applications. Each module can be linked together to form larger spans with waterproof infill panels.
Square Umbrella Features
- Certified C.P. Engineered Non Retractable Design
- Structural Steel Support Struts - no wires used
- Acrylic or Tedlar PVC/Polyester Fully Welded Membranes
- Zinc & Powder Coated Steel frames
- Marine Grade Stainless Cables & Fittings
- Engineered for winds up to 160km/hr - 100mph
- 10 Year Structural Warranty
Options
- Electropolished Stainless Steel Frames
- Provision for Electric Lighting and Heating Units
- Full range of Dulux RAL powdercoat colours
- 16 Standard Membrane Colours
» Contact us for more information about our square umbrellas.
Square Umbrella Curtain Series
The Curtain Series square umbrella provides a straight edge member for easy provision of side curtains and optional corner posts for roll up or zip track fittings.
Curtain Series Features
- Certified C.P. Engineered Non Retractable Design
- Structural Steel Support Struts - no wires used
- Acrylic or Tedlar PVC/Polyester Fully Welded Membranes
- Zinc & Powder Coated Steel frames
- Marine Grade Stainless Cables & Fittings
- Engineered for winds up to 160km/hr - 100mph
- 10 Year Structural Warranty
Options
- Corner Posts and Baseplates
- Electropolished Stainless Steel Frames
- Provision for Electric Lighting and Heating Units
- Full range of Dulux RAL powdercoat colours
- 16 Standard Membrane Colours
| TYPE |
A |
B |
C |
| Q 8 |
2785 9' 2" |
2100 6' 11" |
2550 8' 2" |
| Q 10 |
2865 9' 5" |
2100 6' 11" |
3275 10' 9" |
| Q 14 | 3275 10' 9" |
2100 6' 11" |
4275 14' |
| Q 5M |
3615 11' 10" |
2250 7' 1" |
5000 16' 5" |
| Q 6M |
4045 13' 3" |
2400 7' 10" |
6000 19' 8" |
Square Umbrella Specifications
| TYPE |
A |
B |
C |
| Q 8C |
3085 10' 1" |
2400 7' 10" |
2500 8' 2" |
| Q 10C |
3180 10' 5" |
2400 7' 10" |
3275 10' 9" |
| Q 14C | 3575 11' 8" |
2400 7' 10" |
4275 14' |
| Q 5MC |
3825 12' 6" |
2400 7' 10" |
5000 16' 5" |
» Contact us for more information about our square umbrellas.
