Flexshade® Tetra

A classical conical shape with four corner columns and internal balanced support frame below the tensioned membrane. The Tetra is engineered to stand the test of time and is an economical, yet durable alternative to typical shade cloth structures or shade sails. Many structures using our Tedlar PVC/Polyester membrane have been weathering the elements for over 20 years.

The Tetra is available with curved or square perimeter edges and can be linked to form a large continuous tension membrane structure. Both Curved and MC modules can be custom designed to meet specific height and plan requirements.

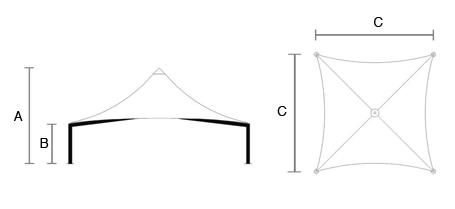

Tetra Curved Single

TYPE
A
B
C
 T 16
 		3994
13' 1"		 2400
7' 10"		 5000
16' 5"
 T 25
 		5175
16' 11"		 2500
8' 2"		 8815
28' 11"

Download Tetra Curved Edge Specifications
Download Tetra Straight Edge Specifications

Features

  • Certified C.P. Engineered Design
  • Structural Steel Support Struts
  • Acrylic or Tedlar PVC/Polyester Fully Welded Membranes
  • Zinc & Powder Coated Steel frames
  • Marine Grade Stainless Cables & Fittings
  • Engineered for winds up to 160km/hr - 100mph
  • 10 Year Structural Warranty

Options

  • Provision for Electric Lighting and Heating Units
  • Full range of Dulux RAL powdercoat colours
  • 16 Standard Membrane Colours

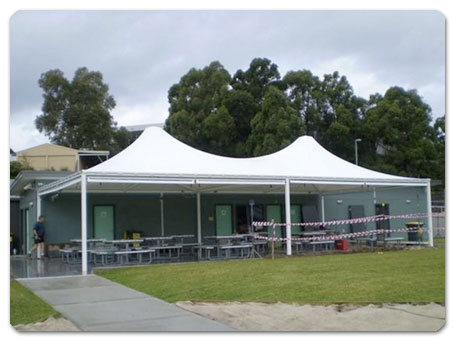

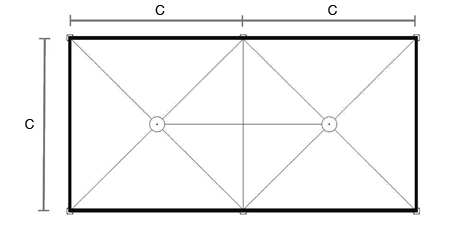

Tetra MC Twin

TYPE
A
B
C
 T 7 MC
 		4500
14' 9"		 2500
8' 2"		 7000
22' 11"
 T 6 MC
 		4400
14' 5"		 2500
8' 2"		 6000
19' 8"
T 5 MC 4000
13' 1"		 2500
8' 2"		 5000
16' 5"
T 4 MC 3765
12' 4"		 2500
8' 2"		 4000
13' 1"

Download Tetra Twin Straight Edge Specifications
